Description

PLC Splitter，1×8 SC/APC Cassette Card Inserting PLC Splitter Module 1:8 Ports Fiber Optical PLC Splitter for Home Wiring, Engineering Projects, Fiber Optic LAN

Brand GINTOOYUN
Connector Type Optical
Cable Type Fibre Optic
Compatible Devices Television
Special Feature Heat Resistant

About this item

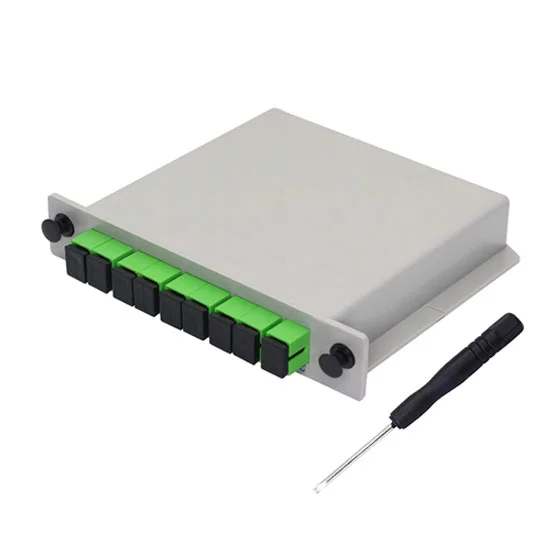

1×8 insert type PLC Splitter.The interface type is SC/APC, fast and practical. Applicable to home wiring, engineering projects, corporate companies, fiber optic LAN.
It has compact structure and good stability, and can be installed in various existing transfer boxes without leaving a lot of installation space.

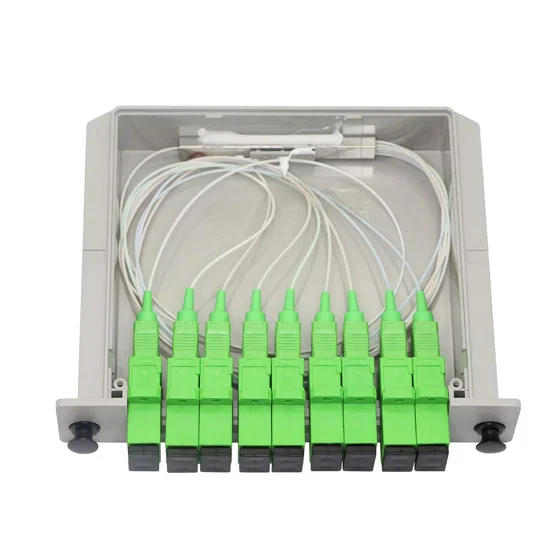

All-fiber structure,stable and fast, built-in high-quality chip,ensure uniform and stable light splitting,quick response without delay.which can meet the needs of different wavelengths
ABS plastic shell, with pit impact resistance, heat resistance and low temperature resistance.
Low insertion loss and low back reflection, High Reliability and Stability,Low PDL.

Product description

Specification:

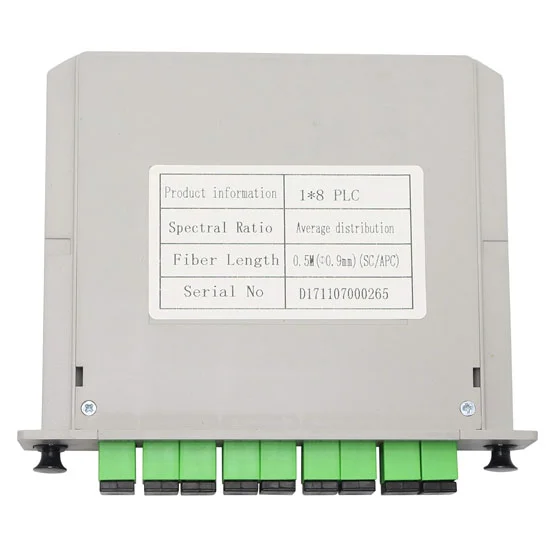

Item Type: SC/APC with insert type 1×8 fiber optic PLC splitter
Standard: 1X8
Type: PLC
Interface Type: SC/APC
Working Wavelength: 1260-1650nm
Insertion Loss: ≤7.5dB
Return Loss: ≤55dB
Directionality: ≤55dB
Spectral Uniformity: ≤0.6dB
Polarization Dependent Loss: ≤0.3dB
Wavelength Dependent Loss: 0.6dB
Temperature Stability: ≤0.6dB
Working Temperature: -40 – 85 ° C
Scope Of Application:
Home Wiring
Project
Company
Optical LAN
network room
monitoring equipment
transfer box
fiber distribution box
cable TV
Feature
1.Low Insertion loss,Low PDL
2.Compact Design,Good channel-to-channel uniformity
3.High Reliability and Stability
size:113*112*25cm
weight:116g
Package List:
1 x SC/APC with insert type 1×8 fiber optic PLC splitter
1 x slotted screwdriver
