Description

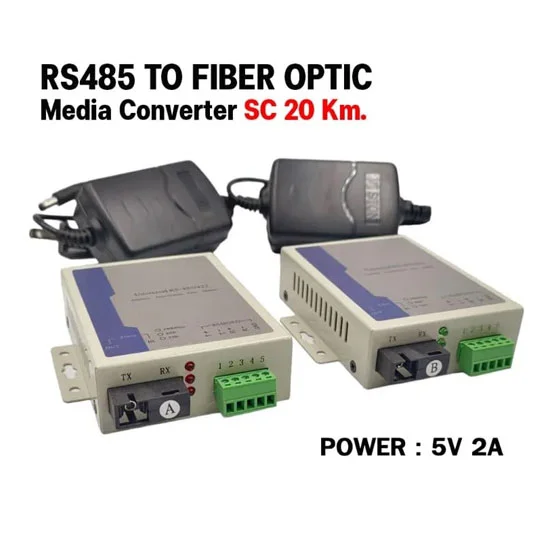

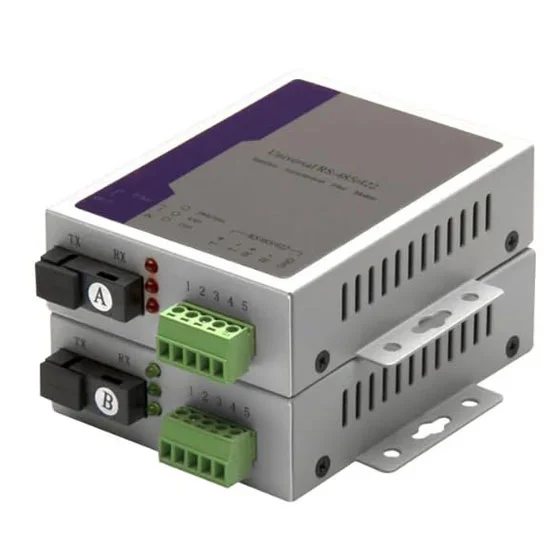

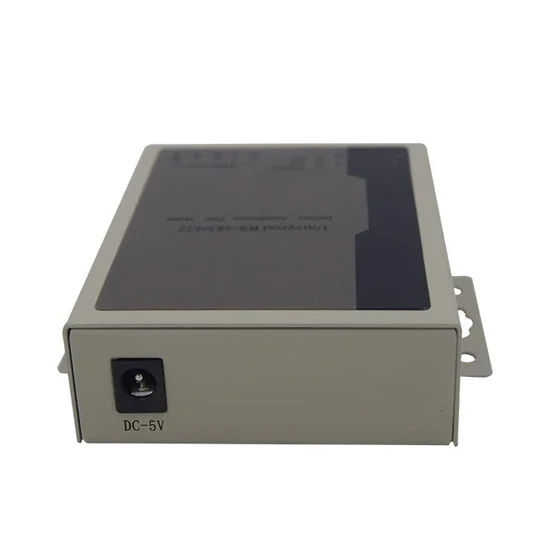

HANUTECH Universal 1CH RS232/RS422/RS485 Optical Converter, Serial Data to Optical Fiber Converter, Interface Asynchronous Fiber Moderm SM 20KM – Pair

Item Dimensions LxWxH 8 x 5 x 7 Centimeters
Brand HANUTECH
Finish Type Matte
Item Package Quantity 1
Input Voltage 240 Volts

About this item

Multi-Mode 2KM, Signal-Mode 20KM
Supply Two Interface (RS485/422)
0-500Kbps The Highest Rate
Fiber Wavelength: Multi-Mode 850nm, Signal-mode 1310nm
RS-485 Signal : D+, D-, GND / RS-422 Signal : R+, R-, T+, T-, GND

Product description

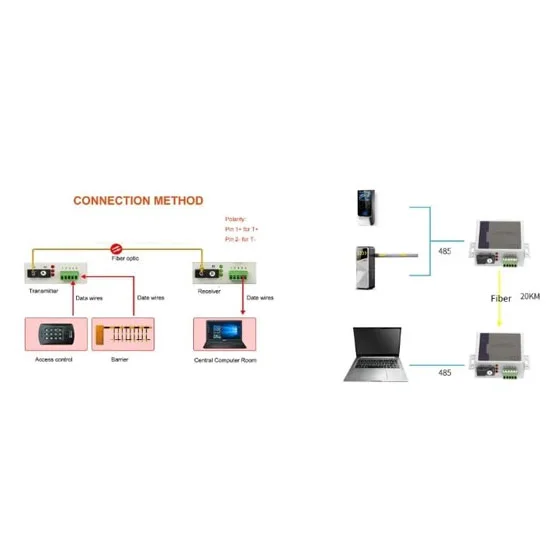

The Model Series converter is equipped with a multiple interface circuit that can handle RS-422/485 serial interfaces andmulti-mode or single- mode fiber. Model converters are used to extend serial transmission distance up to 2 km (multi-mode fiber) or up to 20km (single- mode fiber). Note that the RS-422/485 interfaces cannot be used on the same Model277/B at the same time to convert to fiber.Auto Baud Rate Detection The Model Series incorporates a method for automatically detecting the serial signal baud rate by hardware. This is an extremely convenient feature for the user. Even if a devices baud rate is changed, the signal will still be transmitted through the RS-422/485 to fiber converter without any problem.
